Laboratory Equipment

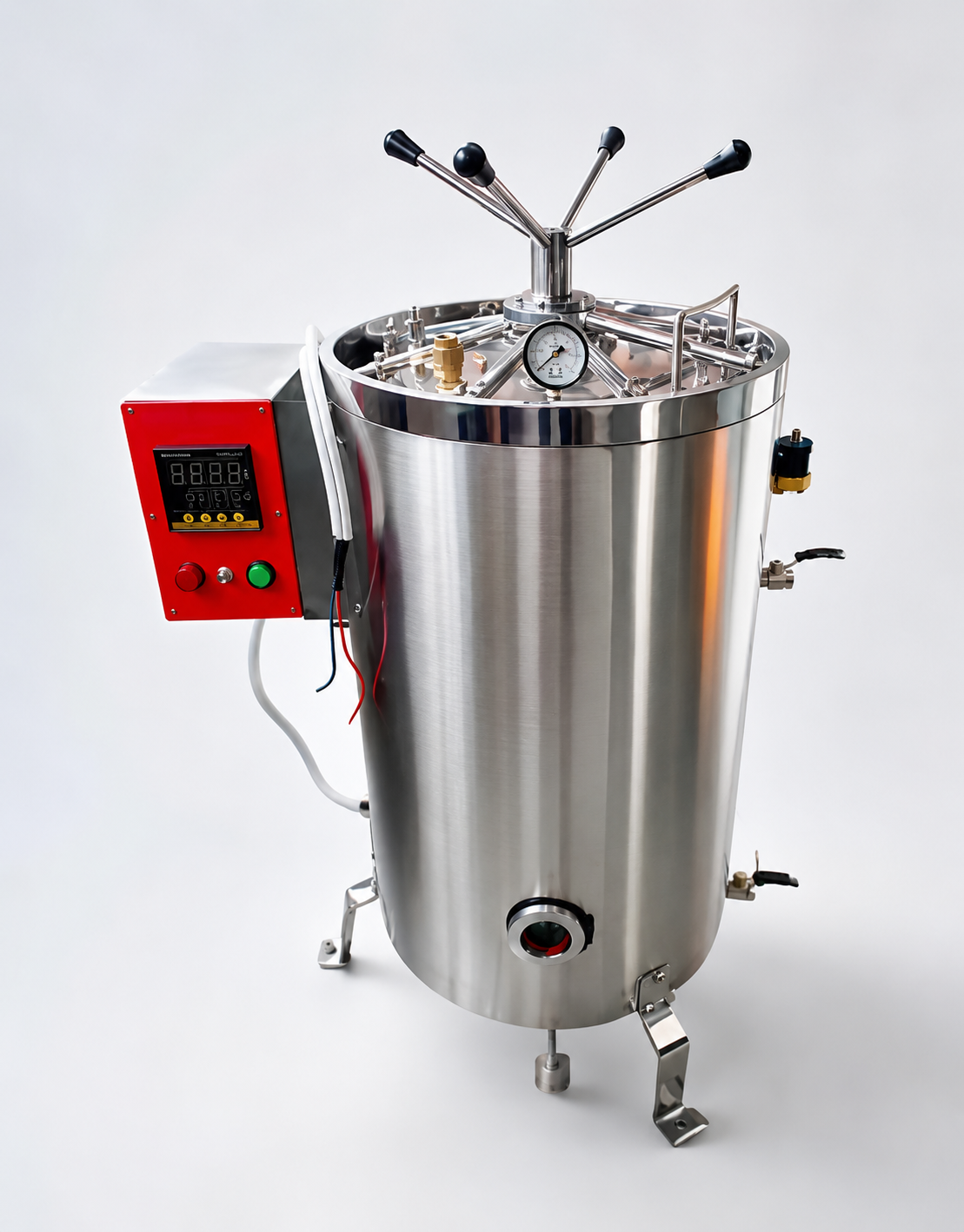

Vertical Autoclave
Model : GS-SSV-100
The inner chamber is made of SS 304/316, and the complete unit is constructed using SS 304 and triple walled construction. The jacket outside the inner chamber is made of SS 304. The unit includes an air inspection with automatic water inlet valve, temperature controller cum indicator, pressure stat, automatic water level indicator and mechanical timer.
Get Best QuoteConstruction & Salient Features
Inner made of Stainless Steel and outer made of S.S.
Supporting Ring & Legs are made of S.S.
Heater cover with stand.
Bucket made of Stainless Steel Sheet.
Lid made of thick machined S.S. plate lined with Stainless Steel from inside.
Lid fitted with Pressure Gauge, Spring Loaded Safety Valve, Manual Exhaust Valve and Water Level Indicator.
Drain Valve facilitates easy cleaning of the chamber.
Fitted with Silicone Rubber Gasket.
All internal joints are Argon Arc welded.
Pressure Control Switch and Low Water Level Cut-Off system.
Working pressure from 15 PSI to 22 PSI.
Works on 220/230 Volts, 50/60Hz AC Supply.
Available Options
PLC Controller
Double Wall
Triple Wall
Digital Timer
Automatic Water Control
Size & Capacity
| Model | Inner Chamber (MM) | Capacity | Load (KW) |
|---|---|---|---|
| GS-SSV-250 | 250 × 450 | 22 Liters | 2.00 |
| GS-SSV-300 | 300 × 500 | 40 Liters | 3.00 |
| GS-SSV-350 | 350 × 550 | 50 Liters | 3.00 |
| GS-SSV-400 | 400 × 600 | 78 Liters | 4.00 |
| GS-SSV-450 | 450 × 600 | 98 Liters | 6.00 |
| GS-SSV-550 | 550 × 750 | 250 Liters | 6.00 |
