GS-SSTB-20
Autoclave Class (B) or (N)
Autoclave Class (B) or (N)
Table Top Horizontal
Bench‑top, pre‑ and post‑vacuum autoclave with automatic temperature control, self‑test system, and CE 1023 approval.
- Type: Class (B) or (N) Table Top Horizontal
- Capacity: 20 to 25 liters
- Construction: Stainless steel seamless chamber + epoxy coated cover
- Control: Program‑based controller with indicator lamps & dry timer
- Safety: Locking mechanism, overheat protection, auto power‑off on AC failure
- Certification: CE 1023 approved
Temp: 121 / 134 °C
Voltage: 220V / 110V
Max Pressure: 0.25 MPa
Warranty: 1 Year

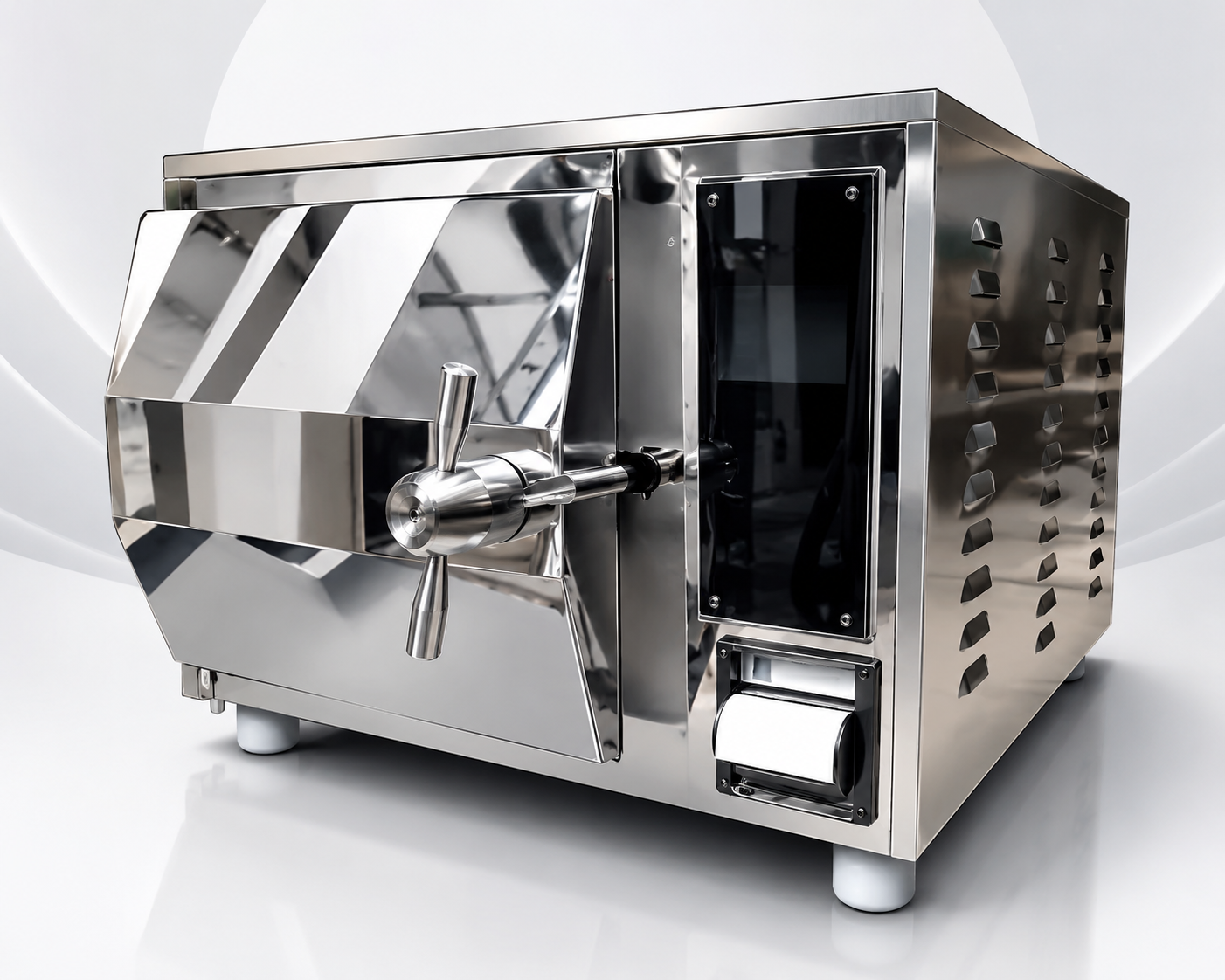

GS-SSTB-20
Table Top
Class (B) / (N)
👆 Replace this with your actual product image
Construction & Salient Features
- Bench‑top, pre‑ and post‑vacuum autoclave with an automatic temperature control system, self‑test system before an operation, self‑test mode diagnoses, fully automatic steam ejection and safety device containing safety valve, automatic sterilization cycles, and auto detections for steam sterilization of glass wares and plastic wares.
- Tank Capacity: 20 to 25 liters.
- Construction: Stainless steel seamless chamber and epoxy coated chamber cover for more safety.
- Control Panel: Sterilize cycle, dry timer, and indicator lamps display on a panel which allows the operator to visibly acknowledge the phase. It has a program‑based controller.
- Safety Lock: Safety locking mechanism that prevents opening while the autoclave is under pressure. A complete control panel is provided in the front.
- Steam Release: Steam release valve will exclude coal air and extra steam.
- Power Failure Protection: If electrical AC power is unavailable or is interrupted, the autoclave shall automatically shut OFF power and buzz to protect the autoclave and instruments.
- Easy Operation: The autoclave controls are easy to operate. Just choose the mode and time you want first, and then press start.
- Proven Technology: It is thoroughly tested and proven technology (CE 1023 approved).
- Gasket: Uniform rubber gasket which endures high pressure and temperature with low dilatability.
Specifications
- Sterilize Temperature: 121 °C or 134 °C
- Electrical: AC 220V or 110V, 2100 watts / 220V and 1600 watt / 110V
- Water Reservoir Capacity: Approx. 2/4 L
- Safety Device: Safety valve, pressure regulator, and overheat protection
- Maximum Temperature: 150 °C
- Maximum Pressure: 0.25 MPa
- Warranty: One year
Autoclave Class (B) or (N) Table Top Horizontal — GS-SSTB-20 — Specifications subject to change without notice.
